eco MAX L connected

SCALABLE DESIGN FOR HIGH-IMPACT TEAMWORK

The Eco Max L Connected is a modular acoustic pod configuration for 8 to 9 people, created by linking two Eco Max L units into a larger, seamless environment. With more internal volume and shared technical systems, this pod is perfect for longer meetings, client sessions or hybrid teamwork requiring space and structure.

It maintains full acoustic privacy while offering flexibility in layout, access and integration allowing teams to collaborate with focus and flow.

WEIGHT
Pod 1553 kg
Crate 276 kg

ACOUSTICS
30,2 dB Cat A
ISO 23351-1

CAPACITY
8 to 9 persons

AIRFLOW
70.8 cfm
120 m3/h

SUSTAINABLE
72,2% recycled
98,9% recyclability

INTEGRATED SYSTEMS, FLEXIBLE ACCESS, RESPONSIBLE MATERIALS

Lighting and airflow are managed through a single ceiling sensor, with built-in power and connectivity options spread across the pod. The connection point can host a screen mount, extra outlets, or remain open for fluid circulation.

Inside, choose from high or low seating, central tables, rear-facing benches, or hybrid setups that evolve with your team. The pod is also available with a reversed door hinge or an additional rear door for multi-directional access. Made from 100% recycled wood, the Eco Max L Connected meets the highest standards for sustainable workplace design.

downloads

Find the files available for download below. Extra material like specific 3D CAD files, Sketchup files, installation manuals, brochures and images.

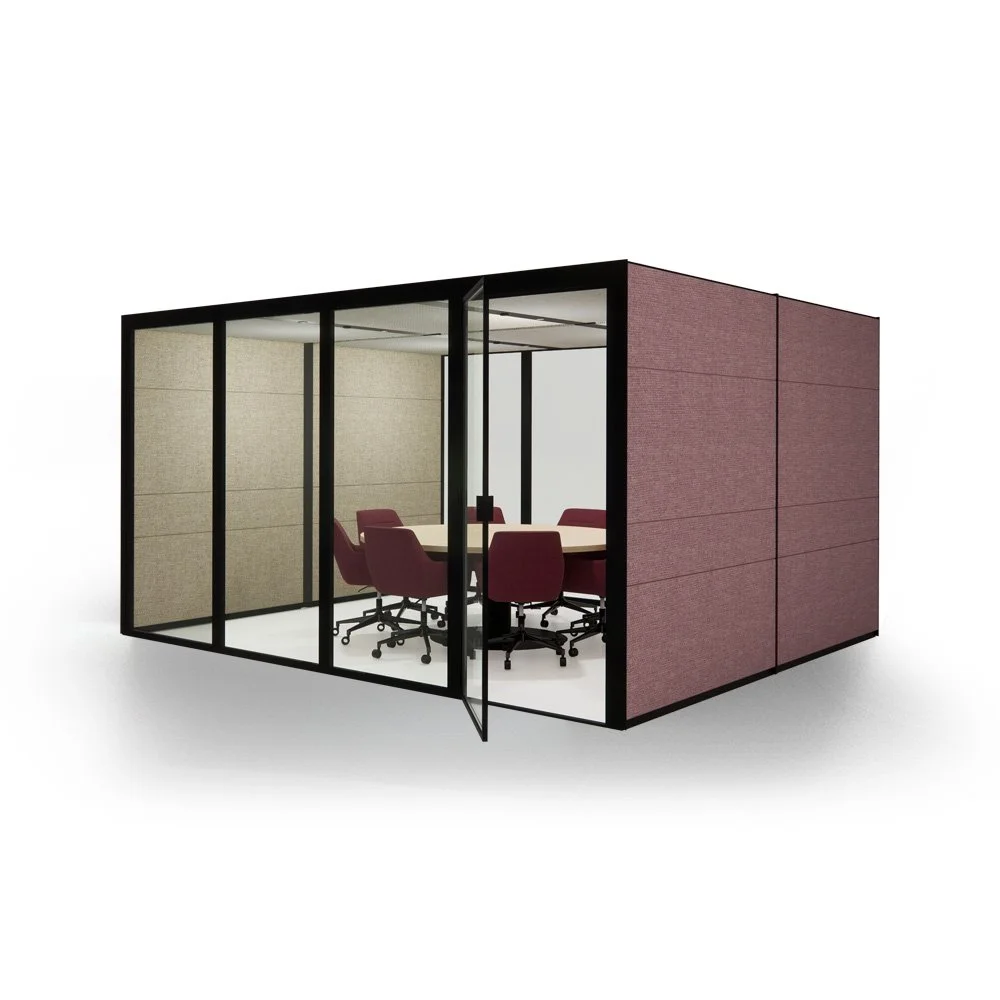

Eco Maxi L connected
with table and chairs

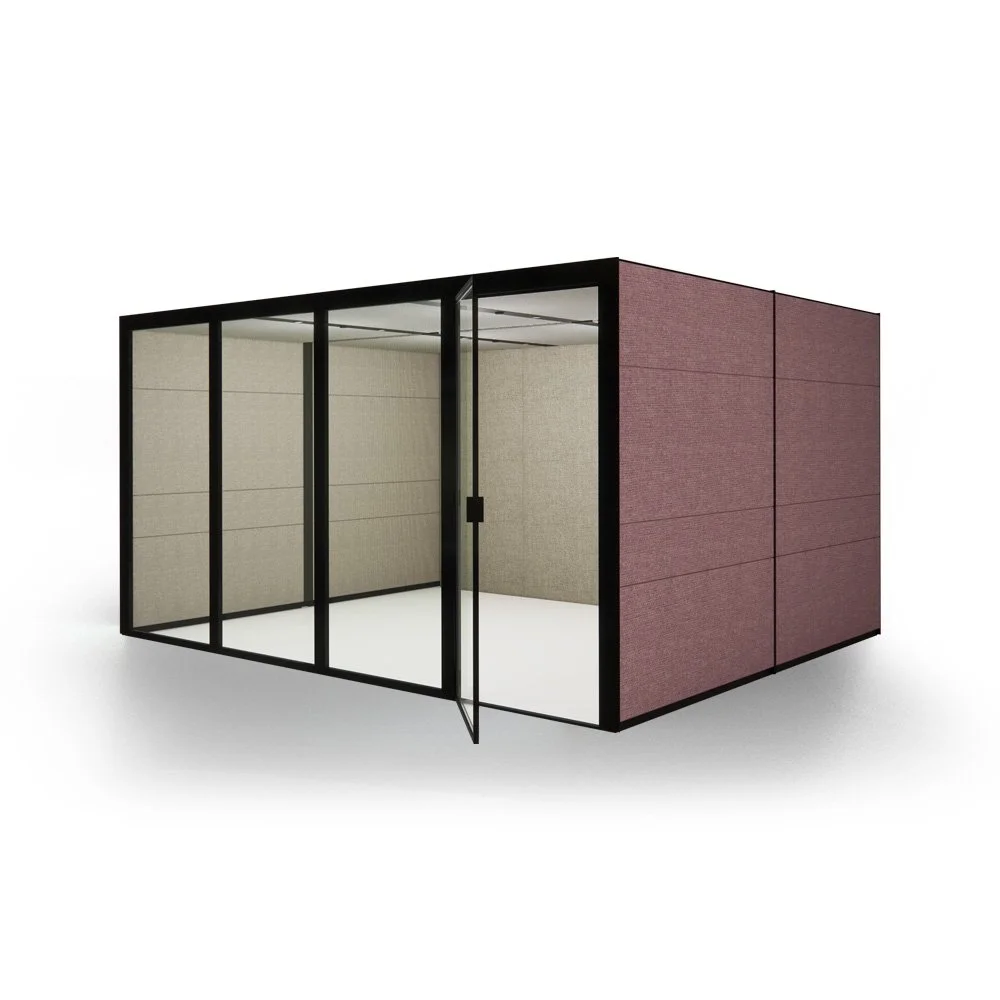

Eco Maxi L connected
with closed backside
